ASTM A312 TP310S Stainless Steel Seamless Pipe For Heat Exchanger

Szczegóły Produktu:

Place of Origin:	CHINA
Nazwa handlowa:	YUHONG
Orzecznictwo:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A312 TP310S

Zapłata:

Minimum Order Quantity:	100KGS
Cena:	negocjowalne
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7DAYS
Payment Terms:	L/C,T/T
Supply Ability:	1000Tons/Month

Kontakt

Wszystkie produkty

Bezszwowa rura ze stali nierdzewnej (285)

Bezszwowa rura ze stali nierdzewnej (273)

Dwustronna rura ze stali nierdzewnej (127)

Dwustronna rura ze stali nierdzewnej (28)

Rurka igłowa (98)

Fin Tube (608)

Wymiennik ciepła (15)

Rura wymiennika ciepła (424)

Zestaw rur wymiennika ciepła (37)

Arkusz rurowy wymiennika ciepła (115)

wyłącznik wymiennika ciepła (36)

Klimatyzer (7)

Zbiornik ciśnieniowy (4)

Spawana rura ze stali nierdzewnej (57)

Spawana rura ze stali nierdzewnej (112)

Nikiel rur (259)

Rura ze stopu niklu (75)

Rura ze stopu miedzi (219)

Rura ze stali stopowej (177)

Rurka tytanowa (9)

Jasna rura wyżarzana (153)

Rura kotła (138)

okucie stalowe (791)

Kołnierz stalowy (577)

Inni (386)

Elementy okładzin (5)

Szczegółowy opis produktu

Material:	TP310S 1.4845	Type:	Seamless Pipe, Welded Pipe
Package:	Ply-wooden Case	Surface:	Bright Annealed
Orzecznictwo:	ISO,SGS,BV	Application:	Heat Exchangers,Cryogenic Structures Etc.
Podkreślić:	Seamless Pipe for Heat Exchanger , ASTM A312 TP310S Seamless Pipe , TP310S Stainless Steel Seamless Pipe

ASTM A312 TP310S Stainless Steel Seamless Pipe for Heat Exchanger Application

ASTM A312 TP310S, as a very important high alloy austenitic heat-resistant stainless steel pipe, is renowned for its excellent high-temperature oxidation resistance and good corrosion resistance, and is widely used in various oxidative environments. According to ASTM A312 standard requirements, seamless pipes and welded pipes can be produced. For high-temperature and high-pressure working environments, seamless pipes are more commonly used and cover a wide range of nominal pipe sizes. In terms of heat treatment, ASTM A312 stainless steel pipes are often supplied in a solution annealed state (heated to ≥ 1040 ° C and then rapidly cooled), with the aim of dissolving carbides, obtaining a uniform austenitic structure, optimizing corrosion resistance, and eliminating pipe stress.

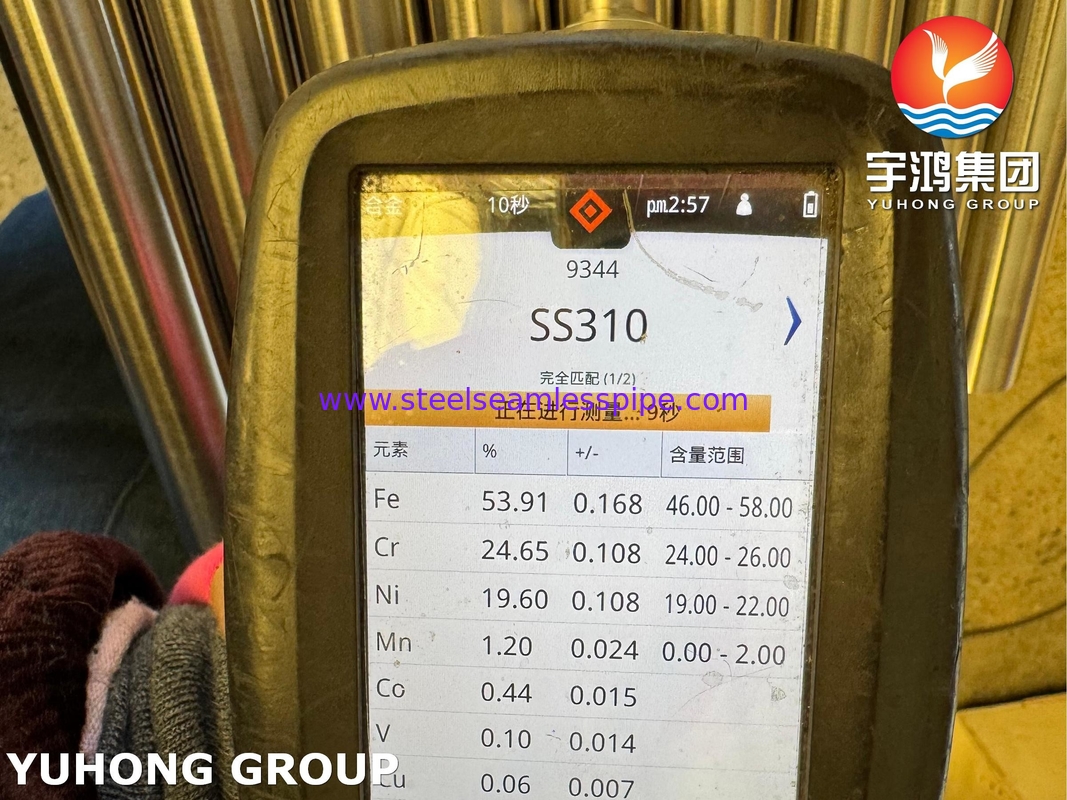

ASTM A312 TP310S Stainless Steel Seamless Pipe Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
310S	min.	–	–	–	–	–	24.0	–	19.0	–
310S	max.	0.08	2.00	1.50	0.045	0.030	26.0	–	22.0	–

The core of the composition design of TP310S stainless steel seamless pipe lies in high chromium and high nickel. High chromium provides the tube with top-level resistance to high temperature oxidation and peeling, and has extremely high resistance to high temperature corrosion in working environments with high sulfur content. The main reason is that chromium can form a dense and stable chromium oxide protective layer in high temperature environments; The high nickel content gives TP310S stainless steel seamless pipes a stable austenitic structure, preventing harmful phase transformations, and exhibiting good resistance to reducing acid corrosion. They can maintain good ductility and creep resistance at high temperatures, while also improving their resistance to carburization.

Equivalent Grades of 310S

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
310S	S31008	310S16	-	1.4845	X8CrNi25-21	2361	SUS 310S

ASTM A312 TP310S Stainless Steel Seamless Pipe Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
310S	515	205	40	95	217

ASTM A312 TP310S Stainless Steel Seamless Pipe Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
310S	7750	200	15.9	16.2	17.0	14.2	18.7	500	720

ASTM A312 TP310S Stainless Steel Seamless Pipe Application

TP310S pipes are widely used in industrial fields that require long-term exposure to high-temperature oxidation environments:

Heat treatment and metallurgical industry: furnace cans, muffle tubes, guide rails, material trays, radiation tubes, fan blades, hot air ducts, high-temperature fixtures, and material baskets for annealing furnaces, carburizing furnaces, tempering furnaces, and sintering furnaces.
Petrochemical and chemical industries: components of ethylene cracking furnaces, hydrogen production conversion furnaces, reforming furnaces, high-temperature heat exchanger tubes, high-temperature reactor liners, and pipelines.
Energy and Power: Superheater and reheater tubes for power plant boilers, superheater and evaporator tubes for waste incinerators, and components for heat recovery steam generators.
Ceramic and glass industry: roller bars for kilns, furnace supports, burner nozzles, high-temperature conveying pipelines.
Other: High temperature valves, flanges, expansion joints; High temperature sensor protective sleeve; Automotive exhaust system components.
