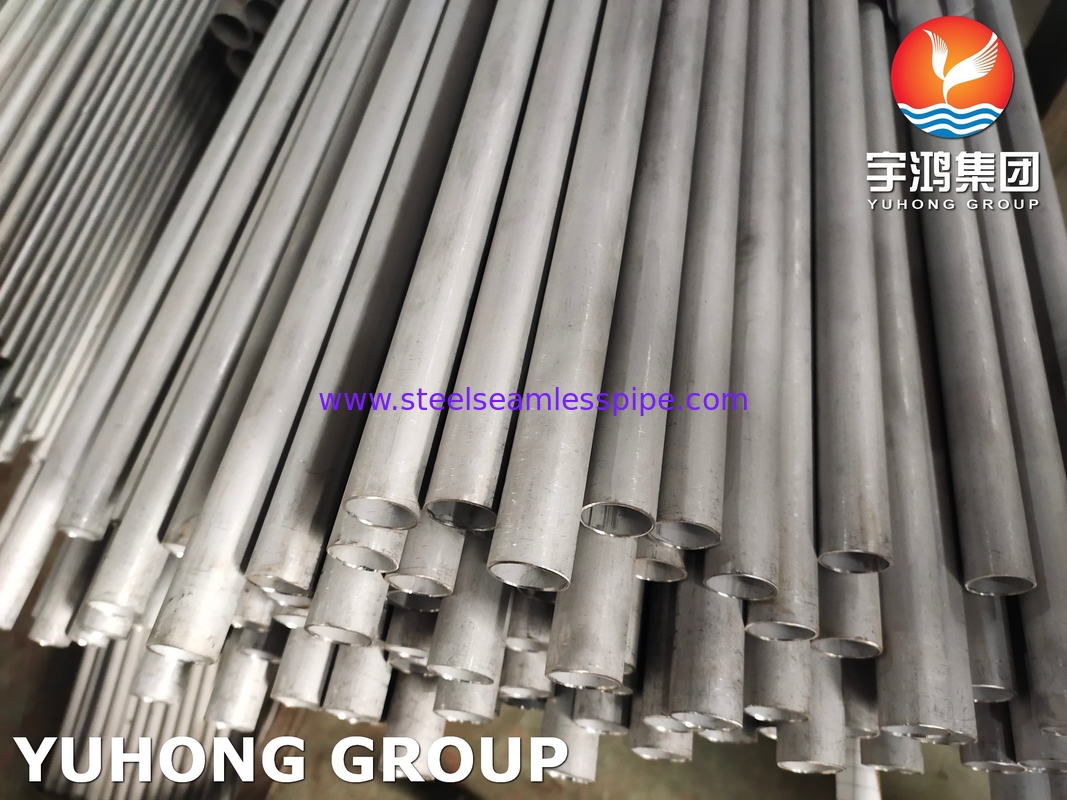

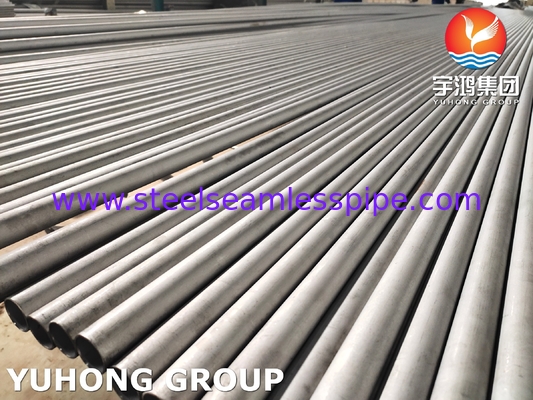

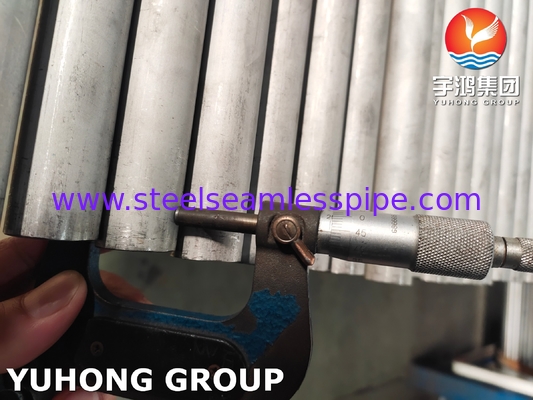

ASTM A789 S31803 Seamless And Welded Ferritic/Austenitic (Duplex) Stainless Steel Tubing

ASTM A789 S31803 Seamless And Welded Ferritic/Austenitic (Duplex) Stainless Steel Tubing

ASTM A789 is the standard specification for seamless and welded ferritic/austenitic (duplex) stainless steel tubing for general service. The S31803 grade, commonly referred to as Duplex 2205, is a widely used duplex stainless steel alloy. It combines the properties of austenitic and ferritic stainless steels, offering excellent strength, corrosion resistance, and durability. Below is a detailed introduction to ASTM A789 S31803 duplex steel seamless pipes:

1. Chemical Composition

2. Mechanical Properties

3. Corrosion Resistance

S31803 duplex stainless steel offers excellent resistance to a wide range of corrosive environments due to its carefully balanced chemistry:

• Pitting and Crevice Corrosion Resistance:

  • The presence of chromium, molybdenum, and nitrogen enhances resistance to localized corrosion in chloride-rich environments, such as seawater or brackish water.

• Stress Corrosion Cracking (SCC):

  • Unlike austenitic stainless steels, duplex stainless steels are highly resistant to SCC under high chloride and elevated temperature conditions.

• General Corrosion Resistance:

  • Excellent resistance to oxidizing and reducing agents, acids like sulfuric acid, and organic/inorganic chemicals.

4. Manufacturing Process

• Seamless Pipes: Manufactured without welds, ensuring uniformity and superior strength compared to welded pipes.
• Heat Treatment: Pipes are solution annealed to ensure optimal phase balance (approx. 50% ferrite and 50% austenite) and mechanical properties.

5. Key Features and Benefits

• High Strength: Approximately twice the yield strength of typical austenitic stainless steel grades such as 304 or 316.
• Superior Corrosion Resistance: Especially suited for chloride-containing environments.
• Cost-Effective: Due to its strength, thinner walls can be used compared to austenitic grades, reducing material costs.
• High Toughness and Ductility: Even in sub-zero temperatures, S31803 maintains excellent toughness.
• Versatility: Can withstand both oxidizing and reducing environments.

6. Applications

ASTM A789 S31803 duplex steel seamless pipes are widely used in various industries due to their excellent properties. Common applications include:

1. Oil and Gas Industry:
   • Heat exchangers, pipelines, and subsea equipment exposed to corrosive environments.
2. Chemical Processing:
   • Handling of aggressive chemicals, acids, and caustics.
3. Marine Industry:
   • Shipbuilding, seawater cooling systems, and desalination plants.
4. Power Generation:
   • Boiler feedwater systems, steam turbines, and heat exchangers.
5. Pulp and Paper Industry:
   • Processing equipment exposed to acidic environments.
6. Food and Beverage Industry:
   • Equipment requiring corrosion resistance and hygiene.

7. Comparison with Other Grades

S31803 is often compared with other duplex grades like S32205, which is a closely related variant with slightly higher nitrogen content for improved corrosion resistance. It also competes with austenitic grades like 316L, with S31803 offering better mechanical strength and corrosion resistance.
