ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	YUHONG
Orzecznictwo:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Numer modelu:	ASME SB163

Zapłata:

Minimalne zamówienie:	500 kg
Cena:	Depend
Szczegóły pakowania:	Sprawa drewna
Czas dostawy:	30-65 dni
Zasady płatności:	T/T, akredytywa
Możliwość Supply:	1000tonów/miesiąc

Kontakt

Wszystkie produkty

Bezszwowa rura ze stali nierdzewnej (290)

Bezszwowa rura ze stali nierdzewnej (277)

Dwustronna rura ze stali nierdzewnej (127)

Dwustronna rura ze stali nierdzewnej (29)

Rurka igłowa (107)

Fin Tube (631)

Wymiennik ciepła (17)

Rura wymiennika ciepła (424)

Zestaw rur wymiennika ciepła (37)

Arkusz rurowy wymiennika ciepła (116)

wyłącznik wymiennika ciepła (36)

Klimatyzer (8)

Zbiornik ciśnieniowy (4)

Spawana rura ze stali nierdzewnej (57)

Spawana rura ze stali nierdzewnej (114)

Nikiel rur (261)

Rura ze stopu niklu (79)

Rura ze stopu miedzi (227)

Rura ze stali stopowej (184)

Rurka tytanowa (10)

Jasna rura wyżarzana (153)

Rura kotła (145)

okucie stalowe (804)

Kołnierz stalowy (590)

Inni (391)

Elementy okładzin (7)

Szczegółowy opis produktu

Produkt:	Rury skraplaczy i wymienników ciepła	Materiał rur skraplaczy i wymienników ciepła:	Stop niklu
Standardowe rury skraplaczy i wymienników ciepła:	ASME SB163	Klasa rur skraplaczy i wymienników ciepła:	N02201
Zastosowanie rur skraplaczy i wymienników ciepła:	Wymienniki ciepła / kotły / skraplacze itp.	Pakowanie rur skraplaczy i wymienników ciepła:	Sprawa drewna
Podkreślić:	ASME SB163 nickel alloy tubes , N02201 seamless condenser tubes , nickel alloy heat exchanger tubes

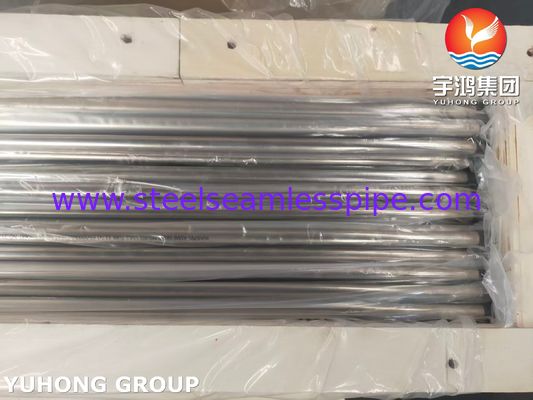

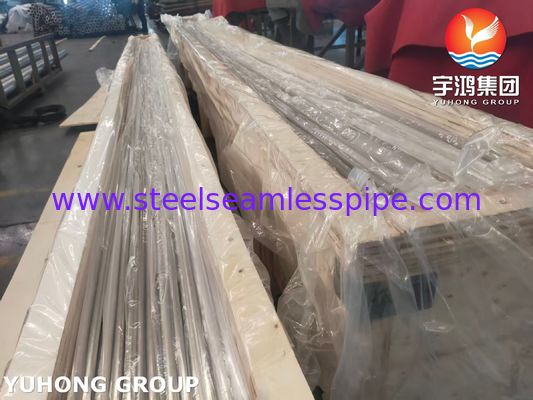

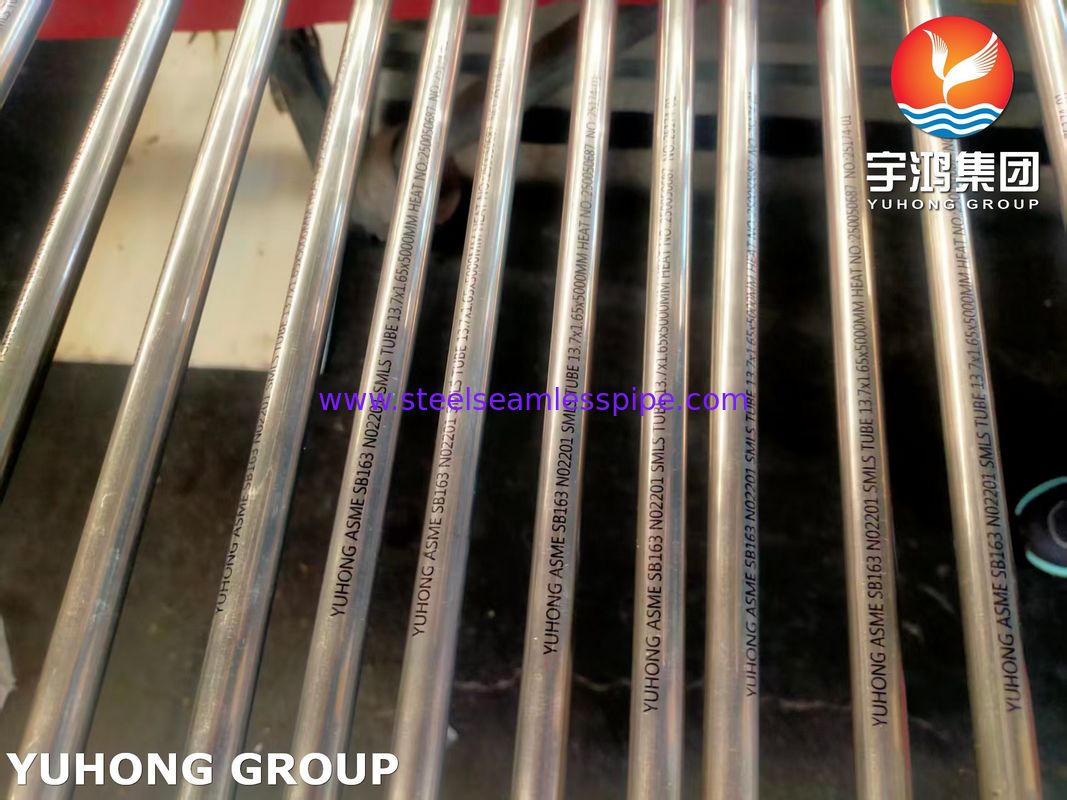

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

YUHONG Group can offer ASTM B163 / ASME SB163 N02201 SMLS nickel alloy tubes.

ASTM B163 / ASME SB163 is the standard specification for seamless nickel and nickel-alloy condenser and heat-exchanger tubes. N02201 (Alloy 201) likes N02200, it's a commercially pure nickel (99.0% min) known for its excellent resistance to corrosion, particularly in caustic environments, and its high thermal and electrical conductivity. Its seamless nature ensures reliability under pressure and in corrosive service.N02201 resists corrosion in a wide range of reducing and neutral media, including fresh water, natural waters, non-oxidizing salts, and alkaline solutions. It is particularly resistant to caustic alkalies.

N02201 maintains good strength and ductility from cryogenic temperatures up to moderately high temperatures. Alloy 201 has very low carbon content (<0.02%), which prevents carbide precipitation (sensitization) during welding and service, preserving its corrosion resistance in the heat-affected zones.

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes 0

Chemical Composition % Alloy 201 / UNS N02201

Nickel	Copper	Iron	Manganese	Carbon	Silicon	Sulfur
99.0 min	0.25 max	0.40 max	0.35	0.02max	0.35	0.01
Nickel element shall be determined arithmetically by difference.

Mechanical Property Alloy 201 / UNS N02201

Condition	Tensile Strength min	Yield Strength min	Elongation (%)	Rockwell Hardness
Annealed	50ksi (345MPa)	28ksi (193MPa)	40 min.	/
Stress-relieved	60ksi (414MPa)	55ksi (379MPa)	15 min.	B62 max

SB163 N02201 tubes common applications include:

Caustic Evaporators and Concentrators
Tubes are used in heat exchangers that concentrate sodium hydroxide (NaOH) or potassium hydroxide (KOH) solutions from weak concentrations to 50% or even 73%. Stainless steel would corrode catastrophically in this service.

Chemical Processing Industry (CPI)
1.Organic Chlorination Processes: Handling chlorinated hydrocarbons and associated by-products like HCl.
2.Production of Plastics and Synthetic Fibers: Where corrosive catalysts or intermediates are present.
3.Fine Chemical and Pharmaceutical Synthesis: For reactors and heat exchangers handling aggressive media where purity is critical (nickel ions are less problematic than corrosion products from other metals).

Power Generation & Marine
1.Feedwater Heaters in Advanced Plants: Where water chemistry is highly controlled, and reliability is paramount.
2.Specialized Condensers: In geothermal plants or in coastal/offshore facilities where cooling water is highly aggressive, brackish, or polluted, and where chlorination is used for biofouling control.

Other Specialized Applications
1.HF Alkylation Units in oil refineries (for handling hydrogen fluoride).
2.Production and Handling of Fluorine and Fluorinated Compounds.
3.Sea Water Desalination Plants, particularly in the high-temperature brine heaters and sections with high chloride concentration.

Testing and Inspection

Hydrostatic Test (or Nondestructive Electric Test)

Flattening Test,Reverse Flattening Test

Flaring Test

Hardness Test

Tension Tests

Chemical Analysis
