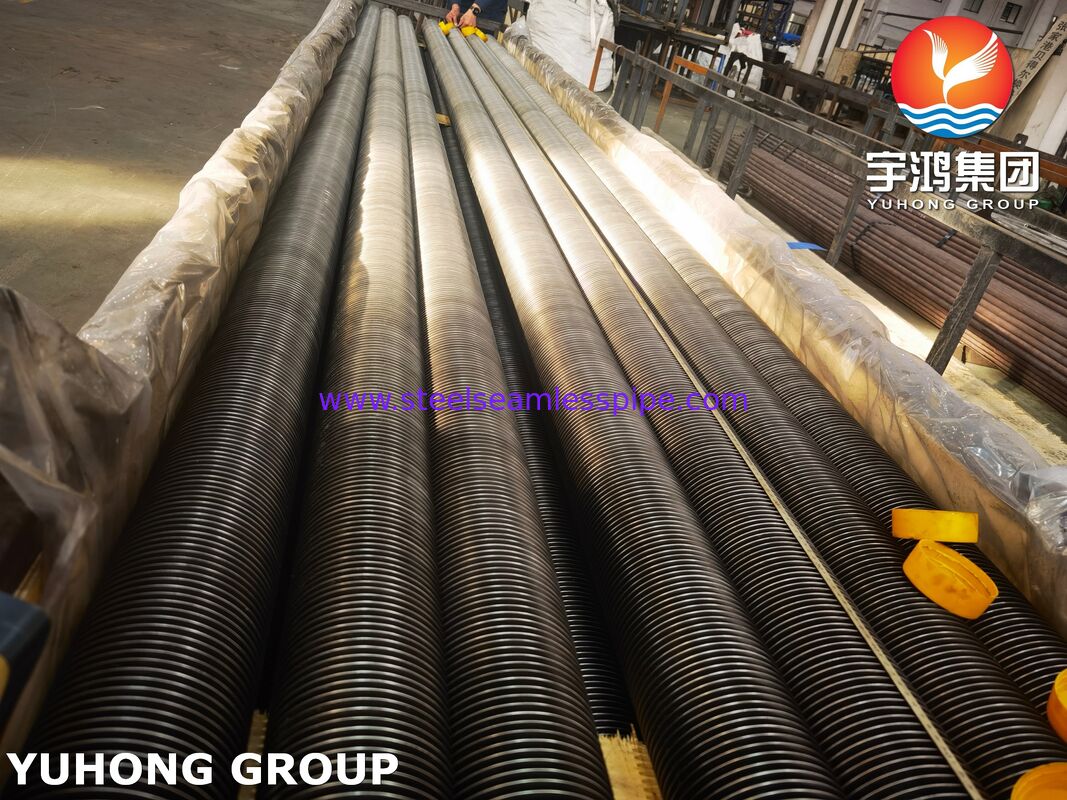

ASTM A106 Gr.B High-Frequency Welded Finned Tubes for Heat Exchangers
Product Overview
ASTM A106 Grade B High-Frequency Welded (HFW) Finned Tubes are advanced heat transfer components designed to maximize thermal performance in industrial heat exchangers, air-cooled heat exchangers, economizers, waste heat recovery units, boilers, and petrochemical processing equipment. Manufactured by continuously welding helical fins onto the external surface of seamless carbon steel tubes using high-frequency electrical resistance technology, these finned tubes provide a strong metallurgical bond between the fin and base tube, resulting in superior heat transfer efficiency and long-term operational reliability.
The high-frequency welding process creates a continuous, fully bonded fin-to-tube interface that minimizes thermal resistance and ensures excellent heat conduction. Compared with mechanically bonded finned tubes, HFW finned tubes offer higher mechanical strength, greater resistance to thermal cycling, and improved performance under demanding operating conditions.
Key Features
- Continuous metallurgical bond between fin and tube
- Excellent heat transfer efficiency
- High mechanical integrity and durability
- Suitable for elevated temperature applications
- Reduced thermal contact resistance
- Excellent vibration resistance
- Long service life with minimal maintenance
- Available with solid or serrated fin configurations
- Customizable dimensions to meet project specifications
Manufacturing Process
High-frequency welded finned tubes are produced by helically wrapping a steel fin strip around the base tube while applying high-frequency electrical current at the fin root. The generated heat creates localized fusion, producing a continuous weld along the entire fin-to-tube contact surface. This process ensures maximum heat transfer efficiency and mechanical stability without significantly affecting the properties of the base tube.
Typical Applications
- Boiler Economizers
- Heat Recovery Steam Generators (HRSG)
- Waste Heat Recovery Systems
- Petrochemical Plants
- Oil Refineries
- Natural Gas Processing Facilities
- Power Generation Plants
- Industrial Furnaces
- Process Heaters
- Chemical Processing Equipment
Common Size Range
Base Tube Dimensions
| Parameter |
Typical Range |
| Tube OD |
19.05 mm – 63.5 mm (3/4" – 2-1/2") |
| Wall Thickness |
2.0 mm – 8.0 mm |
| Tube Length |
Up to 24,000 mm |
| Material |
ASTM A106 Gr.B Seamless Carbon Steel |
Fin Specifications
| Parameter |
Typical Range |
| Fin Height |
8 mm – 25 mm |
| Fin Thickness |
0.8 mm – 2.0 mm |
| Fin Pitch |
3 mm – 12 mm |
| Fin Density |
2 – 8 FPI |
| Fin Type |
Solid or Serrated |
Typically ranging from 35 mm to 110 mm depending on fin geometry.
Custom dimensions are available according to customer requirements and project specifications.
ASTM A106 Grade B Chemical Composition
| Element |
Composition (%) |
| Carbon (C) |
Max 0.30 |
| Manganese (Mn) |
0.29 – 1.06 |
| Phosphorus (P) |
Max 0.035 |
| Sulfur (S) |
Max 0.035 |
| Silicon (Si) |
Min 0.10 |
| Copper (Cu)* |
Max 0.40 |
| Nickel (Ni)* |
Max 0.40 |
| Chromium (Cr)* |
Max 0.40 |
| Molybdenum (Mo)* |
Max 0.15 |
| Vanadium (V)* |
Max 0.08 |
*Residual elements in accordance with ASTM A106 requirements.
Mechanical Properties
| Property |
Minimum Value |
| Tensile Strength |
415 MPa (60 ksi) |
| Yield Strength |
240 MPa (35 ksi) |
| Elongation |
20% |
| Hardness |
As specified by ASTM A106 |
| Hydrostatic Capability |
Per ASTM A106 requirements |
These mechanical properties provide excellent strength and reliability for heat exchanger applications operating under pressure and temperature fluctuations.
Inspection and Testing
To ensure consistent quality and performance, each batch of ASTM A106 Gr.B High-Frequency Welded Finned Tubes undergoes comprehensive inspection and testing.

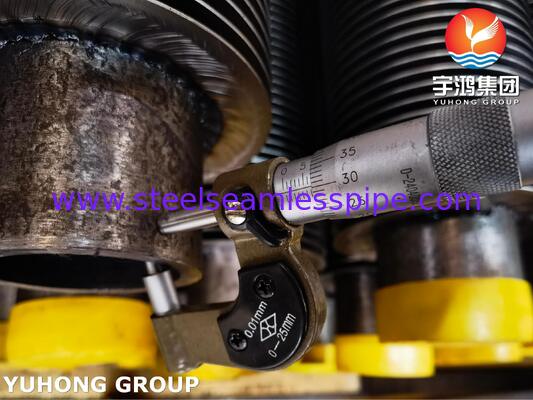

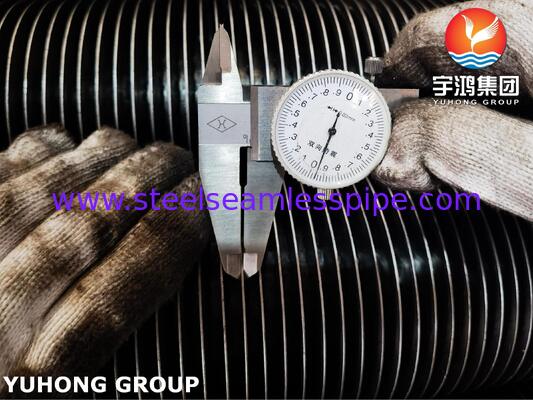

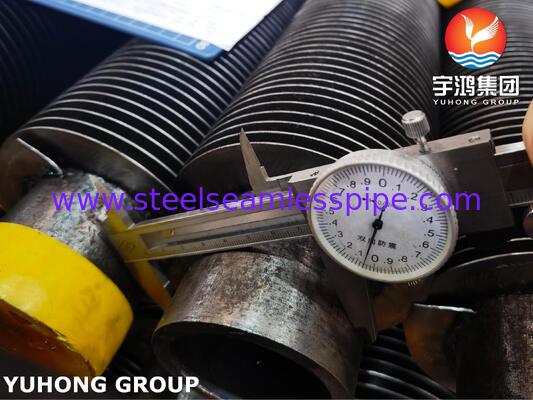

Dimensional Inspection
- Tube outside diameter measurement
- Wall thickness verification
- Fin height inspection
- Fin pitch verification
- Straightness measurement
- Length verification
Weld Quality Inspection
- Visual weld examination
- Continuous weld integrity inspection
- Fin-to-tube bond assessment
- Weld profile verification
Non-Destructive Testing (NDT)
- Eddy Current Testing (ECT)
- Ultrasonic Testing (UT)
- Magnetic Particle Inspection (MPI)
- Dye Penetrant Testing (PT) when required
Mechanical Testing
- Tensile Test
- Flattening Test
- Flaring Test
- Bend Test (if specified)
Pressure Testing
- Hydrostatic Pressure Test
- Pneumatic Leak Test (optional)
Material Verification
- Positive Material Identification (PMI)
- Chemical Analysis
- Mechanical Property Verification
- Mill Test Certificate Review
Advantages of ASTM A106 Gr.B HFW Finned Tubes
Enhanced Heat Transfer Performance
The increased external surface area significantly improves heat transfer efficiency, allowing for more compact and energy-efficient heat exchanger designs.
Strong Fin-to-Tube Bond
The high-frequency welding process creates a permanent metallurgical connection that resists fin separation during thermal expansion and vibration.
Reduced Operating Costs
Improved thermal performance lowers energy consumption and enhances overall system efficiency.
Long-Term Reliability
Carbon steel construction combined with continuous welded fins provides excellent durability in demanding industrial environments.
Flexible Design Options
Available in a wide range of dimensions and fin configurations to suit various thermal design requirements.
Available Supply Conditions
- Bare Tube Ends
- Serrated Fin Option
- Hot-Dip Galvanized Finish (Optional)
- Protective Coating Available
- Custom End Preparation
- Export Seaworthy Packaging
Documentation
Each shipment can be supplied with:
- EN 10204 3.1 Material Test Certificate
- Chemical Composition Report
- Mechanical Test Report
- Hydrostatic Test Report
- NDT Inspection Report
- Dimensional Inspection Report
- Packing List and Commercial Documentation
ASTM A106 Gr.B High-Frequency Welded Finned Tubes are an ideal solution for industrial heat exchangers requiring high thermal efficiency, mechanical strength, and dependable long-term performance in power generation, refining, petrochemical, and process industries.
