ASTM A179 Longitudinal Fin Tube For Condensers and Cooling systems

1. ASTM A179 Base Tube Composition

2. A179 Longitudinal Fin Tube Manufacturing Process and Precision

ASTM A179 tubes are manufactured using seamless cold-drawing processes 510. For precision tubes like those potentially used for fin applications, manufacturers employ:

• Multi-pass mild cold drawing with total deformation ≤25% to avoid work hardening.
• Controlled temperature heat treatment at 620–660°C with temperature fluctuations ≤±5°C to eliminate cold drawing stresses.
• Segmental tension straightening for long-length tubes (e.g., 15m) with residual stress ≤10MPa.
• Advanced surface treatments including acid pickling + passivation to achieve surface roughness Ra ≤ 0.8μm 1, with optional phosphating (2–3g/m² coating weight) for enhanced corrosion resistance.

For longitudinal fin tubes, additional processes would include:

• Fin forming through extrusion, welding, or machining processes.

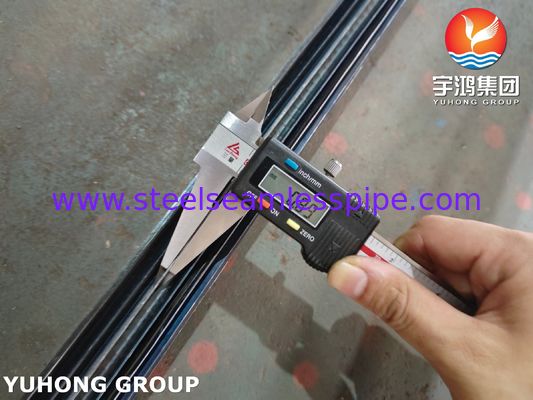

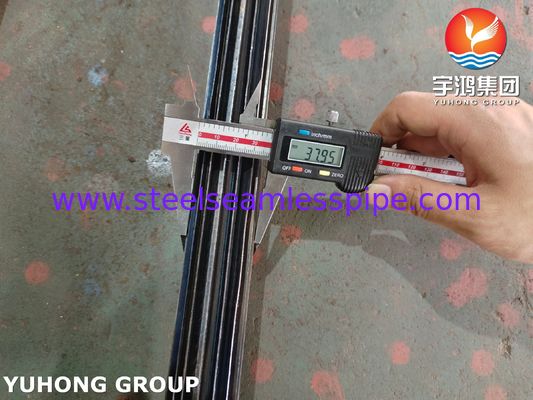

• Fin height and thickness control to optimize heat transfer surface area.

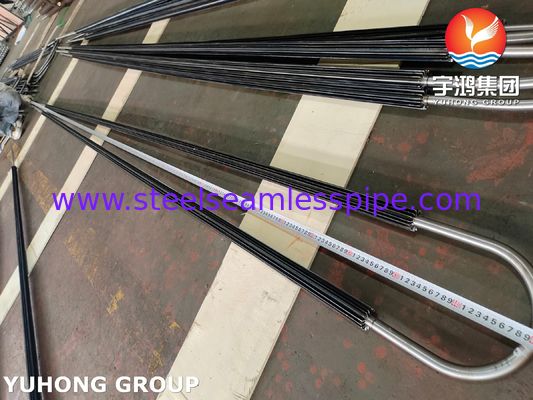

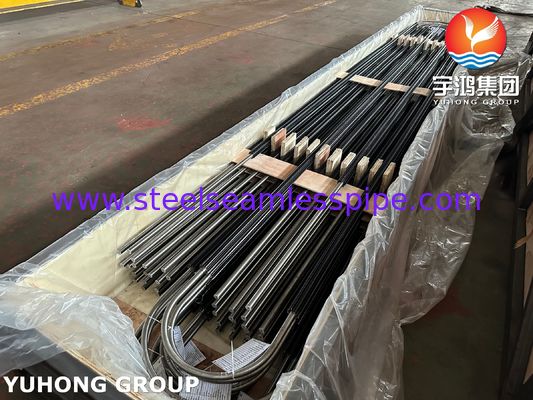

• Potential bending operations for U-tube configurations.

3. A179 Longitudinal Fin Tube Performance Characteristics

Heat Transfer Efficiency:

• The low-carbon steel composition provides high thermal conductivity (λ ≥ 45 W/m·K).
• Thin-wall design (e.g., 2.0mm) enhances heat conduction by approximately 15% compared to thicker-walled tubes.
• Longitudinal fins significantly increase the heat transfer surface area, potentially improving efficiency by 30-50% depending on fin geometry.

Pressure and Corrosion Resistance:

Hydrostatic test pressure: ≥18 MPa (standard calculated value: 22.6 MPa).

Intergranular corrosion resistance: Passes CuSO₄ + H₂SO₄ test (ASTM A262 Practice E) without grain boundary corrosion tendency.

Phosphating treatment option: Provides salt spray resistance ≥72 hours.

Vibration and Fatigue Resistance:

Natural frequency >50Hz at 15m length (avoiding common equipment vibration frequencies of 30–40Hz).

Vibration fatigue resistance: Withstands 10⁷ cycles at ±0.5mm amplitude @30Hz without cracking

4. A179 Longitudinal Fin Tube Fin Tube Application

• Power plant condensers (single-pass length >12m).
• Ship seawater cooling systems.
• Multi-effect evaporator long tube bundles.
• Nuclear steam generators and high-pressure heat exchangers (with appropriate nuclear-grade qualifications).
• Supercritical heat exchangers (working pressure 32MPa @620°C).
• Chemical processing heat exchangers where corrosion resistance and cleanability are important.

5. A179 Longitudinal Fin Tube Quality Assurance and Testing

• 100% eddy current testing per ASTM A450 Section 26, with detection sensitivity for Φ0.3mm through-holes.
• Ultrasonic wall thickness sorting: Segmental scanning every 200mm, wall thickness fluctuation <±0.1mm.
• Hydrostatic testing: 22 MPa/10s without leakage.
• Flattening test: Pressed to H=3.4t (standard requires 1.4t) without cracking.
• Flaring test: Inner diameter expanded by 32% (standard requires 30%) without cracking.
• Helium mass spectrometry leak detection: ≤1×10⁻⁹ Pa·m³/s (for nuclear grade requirements).
