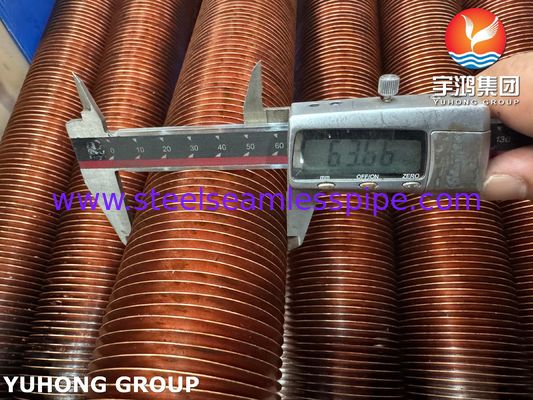

ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform

Szczegóły Produktu:

Miejsce pochodzenia:	CHINY
Nazwa handlowa:	YUHONG
Orzecznictwo:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Numer modelu:	ASTM A106 GR.B z Cu-T2 Fin

Zapłata:

Minimalne zamówienie:	1PC
Cena:	negocjowalne
Szczegóły pakowania:	Ply-wooden Cases with Steel Frames ((obydwa końce rur mają plastikowe pokrywki)
Czas dostawy:	15-20 dni pracy
Zasady płatności:	L/C, T/T.
Możliwość Supply:	Zgodnie z wymaganiami klientów

Kontakt

Wszystkie produkty

Bezszwowa rura ze stali nierdzewnej (290)

Bezszwowa rura ze stali nierdzewnej (277)

Dwustronna rura ze stali nierdzewnej (127)

Dwustronna rura ze stali nierdzewnej (29)

Rurka igłowa (107)

Fin Tube (631)

Wymiennik ciepła (17)

Rura wymiennika ciepła (424)

Zestaw rur wymiennika ciepła (37)

Arkusz rurowy wymiennika ciepła (116)

wyłącznik wymiennika ciepła (36)

Klimatyzer (8)

Zbiornik ciśnieniowy (4)

Spawana rura ze stali nierdzewnej (57)

Spawana rura ze stali nierdzewnej (114)

Nikiel rur (261)

Rura ze stopu niklu (79)

Rura ze stopu miedzi (227)

Rura ze stali stopowej (184)

Rurka tytanowa (10)

Jasna rura wyżarzana (153)

Rura kotła (145)

okucie stalowe (804)

Kołnierz stalowy (590)

Inni (391)

Elementy okładzin (7)

Szczegółowy opis produktu

Nazwa produktu:	Wbudowana rurka płetwy typu G	Gołe specyfikacja i materiał rurki:	ASTM A106 GR.B.
Materiał płetwy:	CU-T2	Gołe rury OD:	16-63 mm
Wysokość płetw:	＜ 17 mm	Grubość płetwy:	~ 0,4 mm
Fin boot:	2,1-5 mm	Aplikacja:	Offshore/ grzejnik/ petrochemiczny/ wymiennik ciepła
badanie:	HT/ET
Podkreślić:	ASTM A106 GR.B fin tube , copper T2 embedded fin tube , offshore platform fin tube

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform

This product is a high-performance, high-reliability composite finned tube engineered specifically for demanding offshore environments. It features a core structure of ASTM A106 GR.B high-strength seamless carbon steel as the base pipe, offering superior pressure-bearing capacity and ensuring structural integrity under high-temperature and high-pressure conditions. The Cu-T2 copper fins are permanently bonded to the base pipe via an advanced embedded manufacturing process.

This unique "Steel-Copper Composite" design delivers exceptional synergistic benefits:

The Steel Base Pipe provides the mechanical strength and ruggedness required to withstand wave-induced stresses, system pressures, and high temperatures.
The Copper Fins leverage their top-tier thermal conductivity to maximize heat transfer efficiency. Furthermore, they utilize the inherent superior corrosion resistance of copper to effectively combat the high-salinity, high-humidity marine atmosphere.

Consequently, this product is the ideal choice for various heat exchangers (such as crude oil heaters, seawater coolers, inert gas system coolers, etc.) on offshore oil & gas platforms, FPSOs, and other marine facilities. It is designed for long-term safe operation, maximized energy efficiency, and minimized lifecycle maintenance costs.

1.Chemical & Mechanical Properties

ASTM A106 Gr.B Chemical Composition (%)
C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
≤0.30%	0.29% ~ 1.06%	≤0.035%	≤0.035%	≥0.10%	≤ 0.40%	≤ 0.40%	≤ 0.15%	≤ 0.40%	≤ 0.08%

Cu-T2 Fin

T2 Copper is a grade of high-purity copper. Its key characteristic is that the combined content of Copper and Silver is not less than 99.90%, meaning the total of other impurity elements must be strictly controlled below 0.1%. It is renowned for its excellent electrical and thermal conductivity.

Mechanical Properties

Component

Mechanical Performance

Key Features

ASTM A106

Gr.B
Base Tube

Tensile Strength: ≥415 MPa
Yield Strength: ≥240 MPa
Elongation (in 50mm): ≥30% (Longitudinal)
Hardness (Max): 187HB

High-Temperature Stability: Suitable for long-term service at -29°C~425°C (short-term up to 480°C with derating).

Pressure Resistance: Standard rating 2.5~10 MPa, ideal for steam/hot water systems.

Optimized Chemistry: Low carbon + manganese enhancement for strength-weldability balance.
Surface Treatment Ready: Accepts galvanizing/epoxy coating after degreasing.

Cu-T2 Fin
Tensile Strength	Annealed (O)	≥ 195 MPa
Tensile Strength	Hard (H)	295 - 380 MPa
Yield Strength	Annealed (O)	≤ 65 MPa
Yield Strength	Hard (H)	250 - 350 MPa
Elongation	Annealed (O)	≥ 40%
Elongation	Hard (H)	10% - 20%
Hardness	Annealed (O)	HBW ≤ 40
Hardness	Hard (H)	HBW 70 - 110
Shear Strength	Annealed (O)	~ 150 MPa
Shear Strength	Hard (H)	~ 250 MPa

2. Key Features

Exceptional Synergistic Effect
Superior Heat Transfer Efficiency
Outstanding Corrosion Resistance in Marine Environments
Unmatched Structural Integrity and Reliability
Long-Lasting Mechanical Bond
Optimized Life Cycle Cost

3. Key Applications

Oil & Gas Processing Systems: Crude Oil Heaters, Gas Coolers, Fuel Oil Heaters
Power & Utility Systems: Central Coolers, Boiler Feedwater Heaters
Safety & Environmental Control Systems: Inert Gas Coolers, Air Coolers, Firewater System Heat Exchangers
Marine & Floating Facilities: FPSOs (Floating Production, Storage, and Offloading units), LNG Carriers, Ship Engine Jacket Water Coolers and Lube Oil Coolers
